Description

See and reduce your radiation exposure.

Interventional staff have higher radiation exposure than most medical professions, because of scattered radiation. Use the RaySafe i3 to easily observe, minimize, and manage radiation exposure without being distracted from the task at hand.



Real-time View

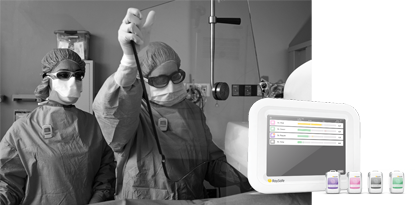

Real-time View, shown on the lab's main screen or on a stand-alone display, shows dose data for connected dosimeters in real time. Green, yellow and red bars indicate the dose rate for each individual.

RaySafe i3 Screen

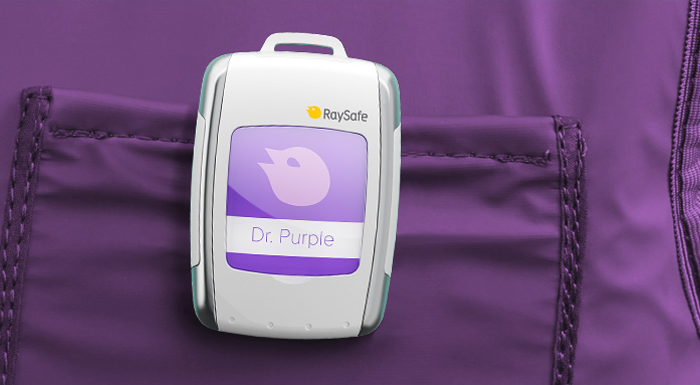

Dosimeter on apron

Real-time Dosimeter

The Real-time Dosimeter measures and records radiation every second. Data is transferred wirelessly to the Real-time Hub.

A USB connector connects the Real-time Dosimeter to the Dose Viewer software, which can be used to change settings and to view and export dose data. The dosimeter is easy t wear, requires minimal maintenance and is made to be personalized.



Software

Dose Viewer is used for administrating dosimeters and viewing personal dose information. For advanced analysis, reporting and archiving of dose information, use Dose Manager. It manages multiple dosimeters and can retrieve dose information from multiple i3 systems throughout the hospital network or via USB storage.

RaySafe i3 Software
Configurations

Configurations

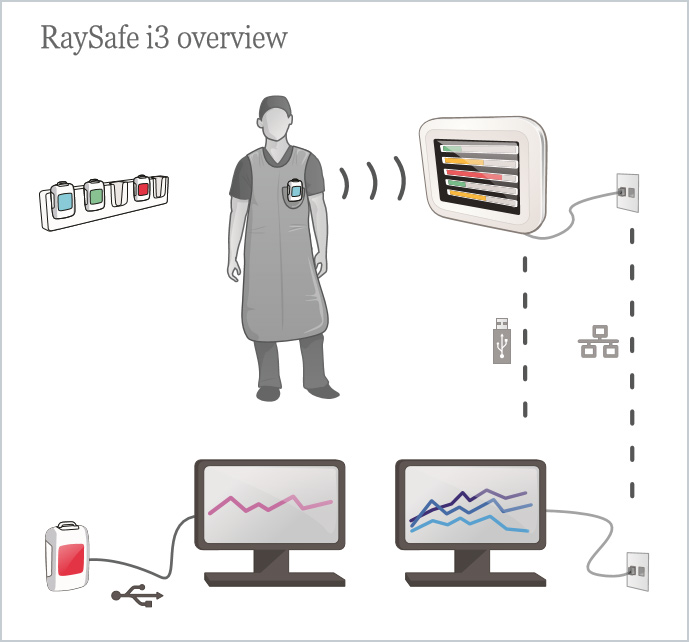

RaySafe i3 comes in two different configurations – RaySafe i3 with Stand-alone Display and RaySafe i3 with On-Screen Display.

RaySafe i3 with Stand-alone Display

Real-time dose rate indication, shown on dedicated display unit

RaySafe i3 configurations

RaySafe Real-time Dosimeter

  • Worn by users in the room, usually placed in chest/torso
  • Measures dose and dose rate
  • Communicates with Real-time Display via radio
  • Stores dose rates for the last hour of exposure, stores dose

RaySafe Real-time Display

  • Shows the Real-time View for up to 8 dosimeters
  • Ose rates are visualized as color coded bars
  • Stores all dose data for all dosimeters within range

RaySafe Dose Viewer

  • Administation of individual dosimeters
  • Shows and exports dose history for one dosimeter, connected with USB

RaySafe Dose Manager

  • Stores, visualizes and exports dose history for all dosimeters
  • Collects data from displays and huvs via network or USB



RaySafe i3 with On-screen Display

Real-time dose rate indication, shown on your choice of display

Note: Available from selected X-ray machine vendors, please contact RaySafe for details.

Real-time dose rate indication, shown on dedicated display unit

RaySafe i3 configuration 2

RaySafe Real-time Hub

  • Communicates with dosimeters within range
  • Collects data and makes it available to the Video unit, as well as to Dose Manager
  • Mounted in lab ceiling

RaySafe Video Unit

  • Uses data provided by Real-time Hub to render the Real-time View, which is transmitted as a video signal (HDMI / DVI)
  • Mounted / placed in technical room or similar
Radiation Safety

Radiation Safety

Radiation protection is important because:

  • Radiation exposure from medical procedures has increased dramatically during the last few years
    Radiation exposure graph
  • Interventional cardiologists receive the highest amounts of radiation among medical personnel

    CT scan in progress

  • Radiation exposure can be reduced significantly by optimizing behavior and by using protective devices
    Equation graphic

ABCs for a Radiation Safety Culture™

Avoidance

Protective clothing and devices, such as lead aprons, thyroid collars, glasses, ceiling suspended screens and table-mounted lead curtains, are the first line of defense against radiation exposure. Personal dosimeters are used to monitor and help regulate exposure.

Waves pointed towards person behind wall

Behavior

Your behavior will affect your radiation exposure. When feasible, increase the distance and decrease the exposure time. Furthermore, scatter radiation is typically lower on the detector side.

Finally, ensure that the proper equipment and appropriate techniques are used, including collimating the X-ray beam.

i2 behavior icon

Control

Ultimately, controlling your dose is easiest when it is known. Only an active dosimeter, such as RaySafe i3, provides constant, real-time radiation exposure information. With the information it provides, healthcare workers can take action to reduce their dose.

i2 control icon
Software

Software

Dose Viewer works with the RaySafe i2 and i3 dosimeters when connected with a computer to display and analyze stored measurements and change dosimeter settings.

RaySafe Dose Viewer lets you:

  • View stored measurements, such as these, when the dosimeter is connected to a computer:
    • Dosimeter ID number Battery status
    • Accumulated dose
    • Dose rate
    • Time period
  • Change dosimeter settings including name and annual dose limit
  • View in a graph or a table format
